Brand Name : TRUCKMAN AUTO
Model Number : TKM345PWS
Certification : SGS, BV, CIQ
Place of Origin : CHINA
MOQ : 1 Unit
Price : negotiable
Payment Terms : L/C, T/T
Supply Ability : 1500 Unit / Per Month
Delivery Time : 20 working days
Packaging Details : Nude
Loading Tons : 40000kg
Axle : 3x13000kg, FUWA
Support Leg : 28 tons, Jost brand
Tire : 12R22.5 or 12.00R20
Dimension : 12500x2500x1600mm
Other : With repair tool

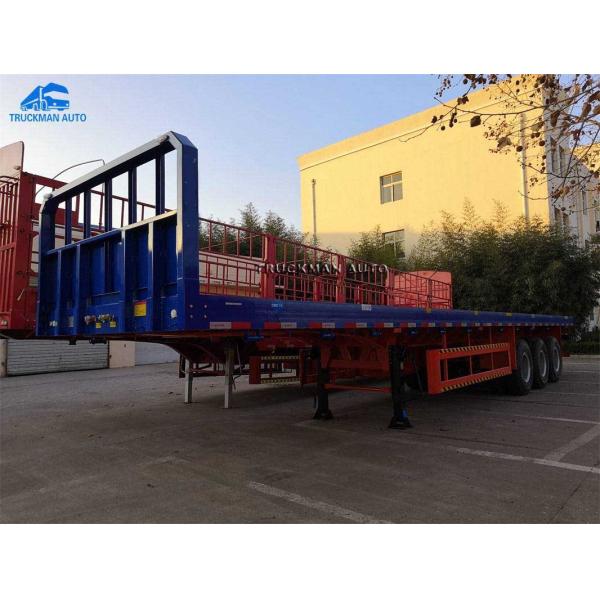

40 Tons Container Flat Bed Semi Trailer For All Model Container Transport
-1. Container Flat Bed Trailer Main Advantage.
-. Checkered board avoid the slip when transport container
-. Stronger hooks, rope tightener and container lock, more safety
-. Heavy duty type leaf spring, rim, suspension and trailer chassis.
-. Suitable transport 20FT, 40FT and 45FT container.
-2. Container Flat Bed Trailer Main Specification.
Description | Parameter value |
Product Name | Container Flat Bed Trailer |
Loading Weight | 40,000kg |
Tare Weight | 8,000kg |
Axle | 3 axle, 3x13 tons |
Suspension | America type, 8mm thickness |
Leaf Spring | 90x16mmx10pcsx6sets |
Rim | 16mm thickness |
Tire | 12R22.5, 12 pcs |
Brake System | WABCO brand, ABS and 6 pcs brake chamber |
Thickness Of Frame | Upper plate 12mm, middle 8mm lower plate 14mm, “I” type main beam |
Material | Q345, high strength steel |
Dimension | 12500x2500x1600mm |
The specification is only for reference, we could design the Container Flat Bed Trailer according to your request.
-3. Container Flat Bed Trailer Matching Product.
Container Flat Bed Trailer need a truck to pull, TRUCKMAN AUTO also could supply SINOTRUCK HOWO 371HP truck head and 420HP truck head, we will recommend the suitable truck head according to your Container Flat Bed Trailer specification.
SINOTRUCK HOWO 420HP Truck Head
SINOTRUCK HOWO 371HP Truck Head
![]() |
